Chemlink | Roofing 8″ E-Curb Straight Penetration Seal (Case of 16 pcs)

Description

E-Curb 8″ Inch Roofing Straight Penetration Seal (Case of 16 pcs)

Used together with other E-Curb components to make up rectangular and L shaped curbs for corners or odd and hard to seal penetrations.

E-Curb penetration seals replace old-style metal pitch pans with versatile, precast components and pourable sealants.  CHEM LINK’s E-Curb System can usually be installed in under 15 minutes and never requires flashing or mechanical attachment. E-Curbs are designed for use on granulated modified bitumen, asphalt and coal tar B.U.R. (built up roofing). E-Curbs are specified for PVC, PIB, and TPO single ply roofing membranes. E-Curbs are highly versatile for sealing penetrations around solar panel mounts, HVAC, Electrical, and any type of structural supports. TPO Primer is required for use with TPO. When installed properly, this system forms a durable, waterproof rubber seal around penetrations. An extended warranty against leaks is activated with submittal of a completed warranty card.

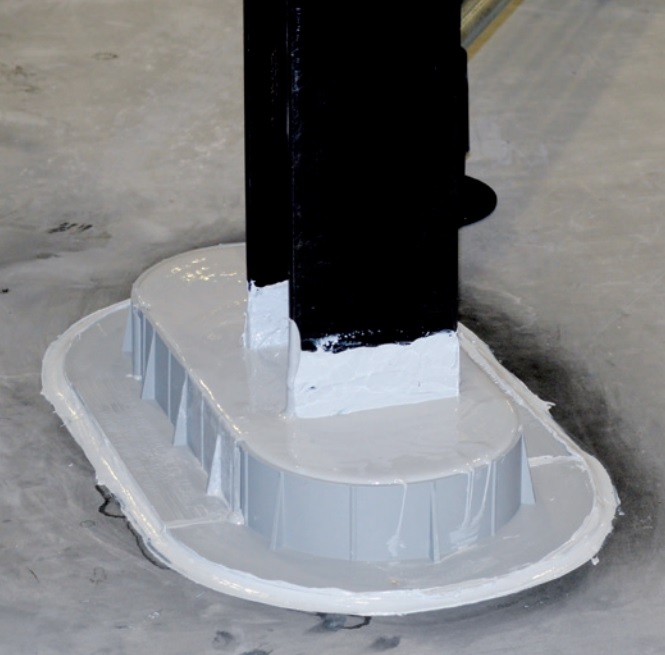

E-Curbs are designed for use on granulated modified bitumen, asphalt and coal tar B.U.R. (built up roofing). E-Curbs are specified for PVC, PIB, and TPO single ply roofing membranes. E-Curbs are highly versatile for sealing penetrations around solar panel mounts, HVAC, Electrical, and any type of structural supports. TPO Primer is required for use with TPO.

When installed properly, this system forms a durable, waterproof rubber seal around penetrations. An extended warranty against leaks is activated with submittal of a completed warranty card.

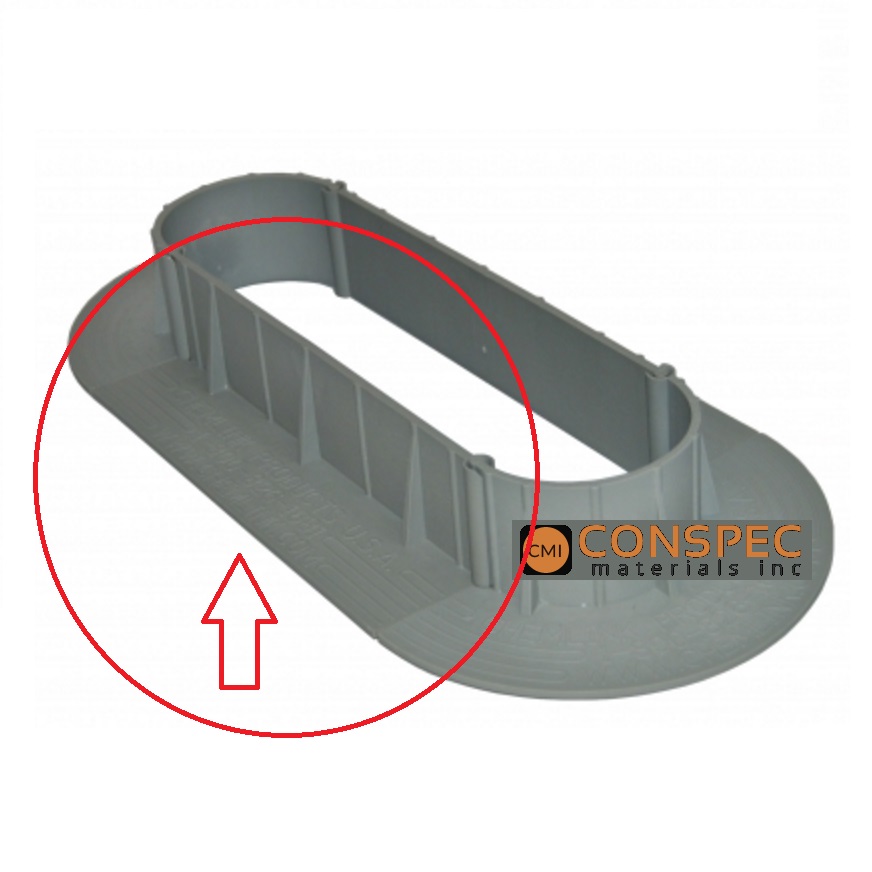

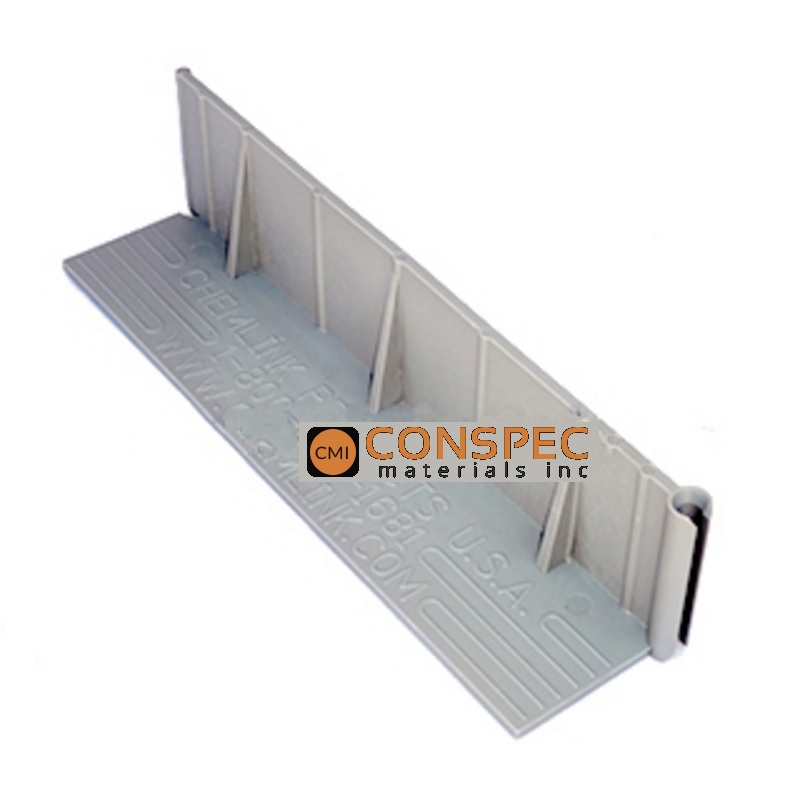

E-Curb precast form components are composed of light weight nylon resin. The E-Curb is 2 inches high and is available in a variety of shapes and sizes. Sizes available include: bisected circular pieces having inside diameters of 3, 4, 6, or 9 inches. Corner pieces having a 2-inch radius, and 8-inch straight pieces are also available to create larger sizes. The outer surface is impervious to ice, corrosion, UV (ultraviolet light) and ponding water.

SOLD AS EACH (1 PIECE)

Special Characteristics

• Rapid installation – “Slip-fit” light weight curb design reduces labor significantly.
• Excellent adhesion to most roofing materials.
• No flashing or mechanical attachment required.
• Service Temperature -40°F to 200°F (-40°C to 93°C)
• 1-Part® accommodates movement and is suggested for use on all granulated membranes and details with excessive movement.
• For sloped roof applications, substitute DuraLink™ non-slump adhesive/sealant instead of 1-Part Pourable Sealant

Extra E-Curb System Components Available

• E-Curb Kits, exterior rings, straights, and corners.
• M-1 Structural Adhesive/Sealant used for bonding the E-Curb components, sealing and priming the penetration.
• 1-Part Pourable Sealant, used to form a durable, water-tight seal around the roof penetration.
• Duralink Super Adhesive/Sealant used for water-tight seal around the roof penetration (Sloped Roof)
